cses monsters Castle Creations Cobra 8 6S ESC + 1515-2200kV V2 Sensored Brushless MoOverview The Castle Creations Cobra 8 6S Limited Edition Combo (010 0172 04) pairs the next generation Cobra 8 brushless ESC with the legendary 1515 2200kV V2 sensored brushless motor in a stunning anodized gold finish. Released to commemorate the launch of Castle's next generation power system, this one of a kind combo fuses unmatched performance with a touch of opulence. The Cobra 8 ESC features a powerful 32 bit dual core processor, Castle's
Overview

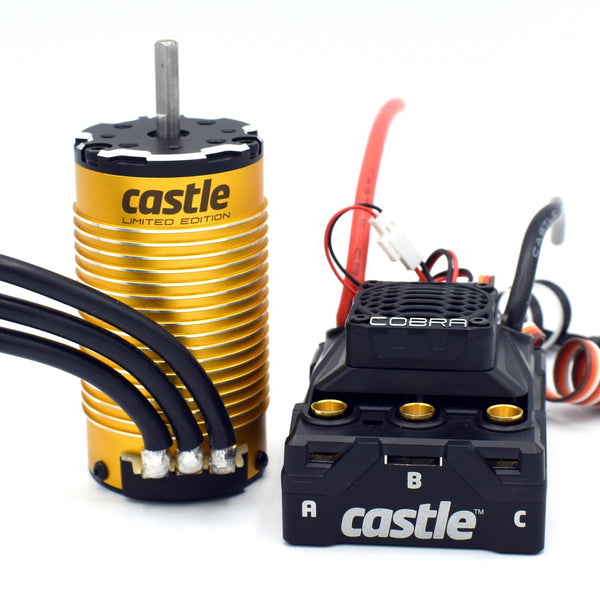

The Castle Creations Cobra 8 6S Limited Edition Combo (010-0172-04) pairs the next-generation Cobra 8 brushless ESC with the legendary 1515-2200kV V2 sensored brushless motor in a stunning anodized gold finish. Released to commemorate the launch of Castle's next-generation power system, this one-of-a-kind combo fuses unmatched performance with a touch of opulence.
The Cobra 8 ESC features a powerful 32-bit dual-core processor, Castle's exclusive CRYO-DRIVE thermal management technology, enhanced data logging, and an adjustable 8A peak BEC (5.0V-8.0V). Paired with the gold 1515-2200kV V2 motor and Castle's SmartSense sensored technology, this system delivers ultra-smooth startup, precise low-speed control, incredible torque, and lightning-fast response.
This combo is exceptional in 1/8 scale buggies, truggies, and on-road vehicles, as well as 1/10 scale monster trucks weighing up to 15 lbs. With Castle Link V4 included for free firmware updates and tuning, plus optional B-Link 2 wireless programming, this is one of the most refined and capable Castle power systems ever offered.
Key Features
- Limited Edition factory-matched ESC and motor combo
- Cobra 8 brushless ESC with 32-bit dual-core processor
- CRYO-DRIVE technology for superior thermal performance
- 1515-2200kV V2 sensored brushless motor in anodized gold
- SmartSense sensored technology for cog-free starts
- Adjustable 8A peak BEC (5.0V-8.0V in 0.1V increments)
- Waterproof aluminum case with elliptical-fin heatsink
- 30mm thermally-controlled cooling fan pre-installed
- Enhanced data logging with onboard accelerometer
- Castle Link V4 USB-C programmer included
Performance Benefits
- 32-bit processor delivers smoother motor control and faster response
- CRYO-DRIVE reduces heat buildup at partial throttle
- Smooth, predictable starts thanks to SmartSense sensored operation
- 8x increased data logging time vs. older generation ESCs
- Adjustable BEC supports a wide range of high-torque servos
- Auxiliary wire enables on-the-fly tuning from the transmitter
- Free firmware updates extend product life
Usage Notes
- Best used with 1/8 scale buggies, truggies, and on-road vehicles
- Also excellent in 1/10 scale monster trucks up to 15 lbs
- Sweet spot is 4S LiPo; full capability up to 6S LiPo
- Use with standard 2.4GHz radio systems
- Refer to Castle Product Finder for recommended motor, battery, and gearing for popular vehicles
Technical Specs
ESC Specifications - Cobra 8
- Brand: Castle Creations
- Model: Cobra 8
- ESC Type: Brushless
- Input Voltage Range: 6.0V - 25.2V (2S - 6S LiPo)
- BEC Voltage: 5.0V - 8.0V adjustable (5.5V default)
- BEC Current: 8A peak
- Running Modes: SmartSense Brushless, Sensored Only, Brushed
- Motor Connectors: 6.5mm Female
- Dimensions: 2.36 x 2.04 x 1.69 in (60 x 52 x 43 mm)
- Weight: 5.84 oz (165.6 g)
- Waterproof: Yes
- Data Logging: Yes
- B-Link 2 Compatible: Yes
Motor Specifications - 1515-2200kV V2 Gold
- Brand: Castle Creations
- Motor Size: 1515
- KV Rating: 2200kV
- Motor Type: Sensored Brushless
- Pole Count: 4-Pole
- Input Voltage: 2S-6S (7.4V-22.2V)
- Motor Connectors: 6.5mm Male Bullets
- Shaft Diameter: 5mm
- Motor Length: 101.2mm
- Motor Diameter: 40mm (41.1mm with fins)
- Weight: 15.1 oz (383 g)
- Finish: Anodized Gold (Limited Edition)
Combo Information
- Scale Compatibility: 1/8 buggies, truggies, on-road; 1/10 monster trucks up to 15 lbs
- Application: Race, basher, on-road performance
- Warranty: 1 year (designed and manufactured in Olathe, KS USA)
- Part Number: 010-0172-04
What's Included
- 1 x Castle Creations Cobra 8 brushless ESC
- 1 x Castle Creations 1515-2200kV V2 Gold sensored brushless motor
- 1 x Castle Link V4 USB-C adapter
- 1 x 300mm Direct Connect Sensor Wire
- Cobra Decals
- ESC Quick Start Guide
Fitment
Compatible Vehicles: ARRMA Typhon, ARRMA Kraton, ARRMA Nero, ARRMA Infraction, ARRMA Talion, ARRMA Felony, Traxxas Sledge, Traxxas Summit, HPI Savage, Losi LMT
Summary
The Cobra 8 + 1515-2200kV V2 Gold combo is the flagship of Castle's 1/8 scale lineup. 32-bit processing, CRYO-DRIVE cooling, sensored smoothness, and a stunning gold motor make this Limited Edition combo a once-in-a-generation Castle power system.
