Description

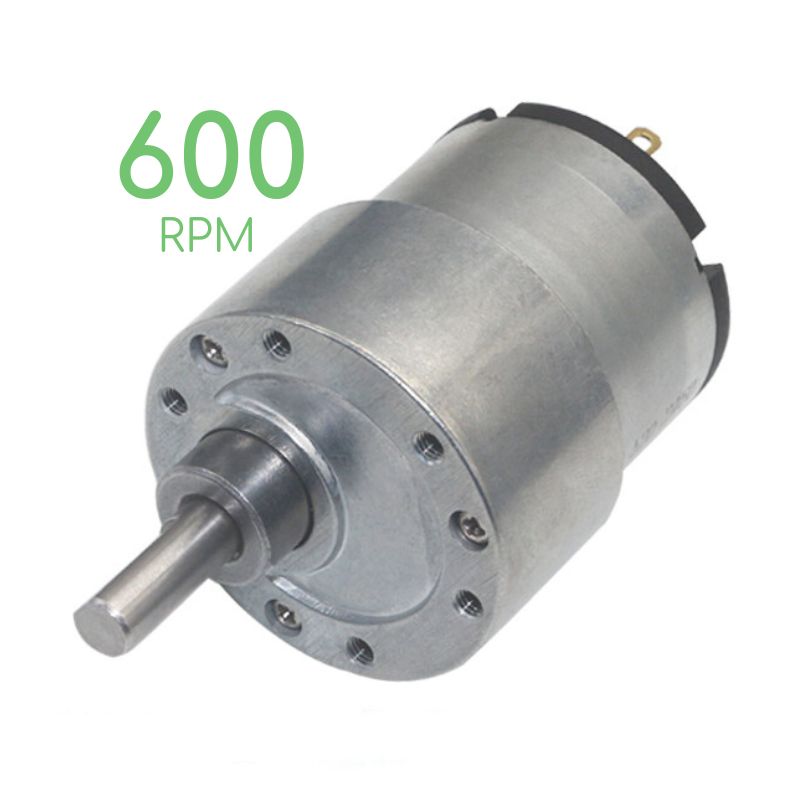

geared electric motors 12V JGB37-520 DC Geared Motor – 600RPM High Torque – VoltaatDescription The JGB37 520 DC Geared Motor is a compact brushed motor designed for applications requiring controlled speed and reliable torque output. It features a metal gearbox with a 10: 1 reduction ratio and delivers up to 600 RPM at 12V. The motor includes a D type shaft with an off centered configuration and multiple mounting points for secure installation. Built for stable and consistent operation, it supports both forward and reverse rotation.
Description
The JGB37-520 DC Geared Motor is a compact brushed motor designed for applications requiring controlled speed and reliable torque output. It features a metal gearbox with a 10:1 reduction ratio and delivers up to 600 RPM at 12V. The motor includes a D-type shaft with an off-centered configuration and multiple mounting points for secure installation. Built for stable and consistent operation, it supports both forward and reverse rotation. Suitable for robotics, automation systems, and compact mechanical projects.
Features
- Metal gearbox construction for durability
- 10:1 gear reduction ratio
- 600 RPM no-load speed at 12V
- High torque output up to 1.1 kg·cm
- D-type shaft for secure coupling
- Off-centered shaft design
- Supports forward and reverse rotation
- Low no-load current consumption
- Compact 37 mm motor body size
- Multiple M3 mounting holes
- Stable speed under load conditions
- Suitable for robotics and automation systems
Specifications
- Rated Voltage: 12V DC
- No Load Speed: 600 RPM
- No Load Current: 0.1A
- Rated Speed: 480 RPM
- Rated Current: 0.20A
- Rated Torque: 0.28 kg·cm
- Rated Power: 3.6W
- Stall Torque: 1.1 kg·cm
- Stall Current: 1.2A
- Gear Ratio: 10:1
- Gearbox Length: 19mm
- Starting Voltage: 1.5V
- Shaft Type: D-Type
- Mounting Holes: M3
Links
- 12V JGB37-520 DC Geared Motor Datasheet
- JGB37-520 DC Geared Motor 3D Model
